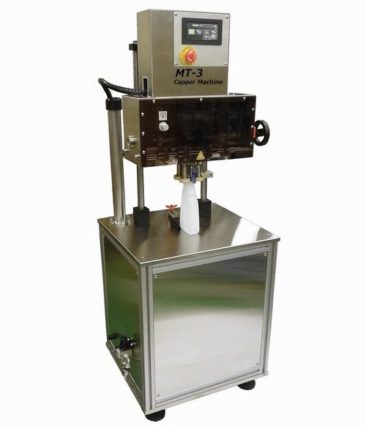

Semi-automatic Servo Capper
Model: MT-3S
Servo-Driven Universal Capper
- Equipped with a servo motor for stable and consistent torque.
- Tightening torque can be precisely set via the touch panel.

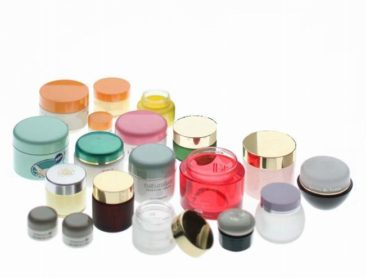

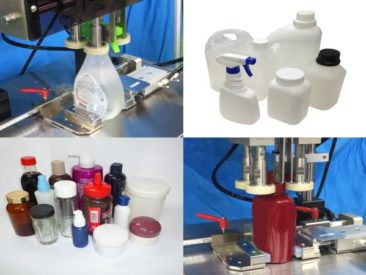

- Compatible with a wide range of cap types, including round screw caps, dispenser caps, pump caps, trigger caps, and hinge caps.
- Ensures secure tightening without scratching or damaging caps.
- Handles multiple product types without tooling changes.
Related Videos
Product Specifications
| Processing Capacity |
Up to 20 pcs/min (varies by operator and container) |
|---|---|
| Capping Head |
Four rubber rollers or urethane belt |
| Cap Size |
Ø15 to Ø100 mm |
| Container Height |
Up to 300 mm |
| Applicable Products |
Screw caps, hinge caps, pump caps, trigger caps, dispenser caps, etc. |
| Torque Range |
0.5 to 3 N·m (high-torque option: up to 5 N·m) |
| Torque Control |
Servo motor |
| Torque Setting |
Touch panel; digital input; memory for up to 40 products |
| Power Supply |
3-phase 200 V, 0.2 kW (high-torque option: 0.4 kW) |
| Required Air Pressure |
0.5 MPa, 80 L/min |
| Options |
Pre-tightening head press / final-tightening unit; spout-pouch compatibility; high-torque option |
