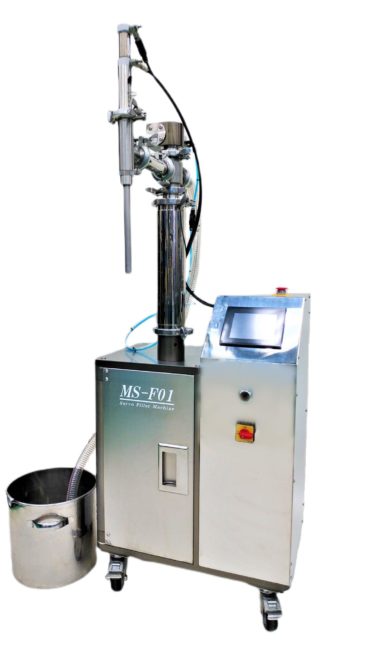

Servo Piston Filler
Model: MS-F01
High-Precision Filling with Servo-Driven Piston System
Point 1 Easy Operation

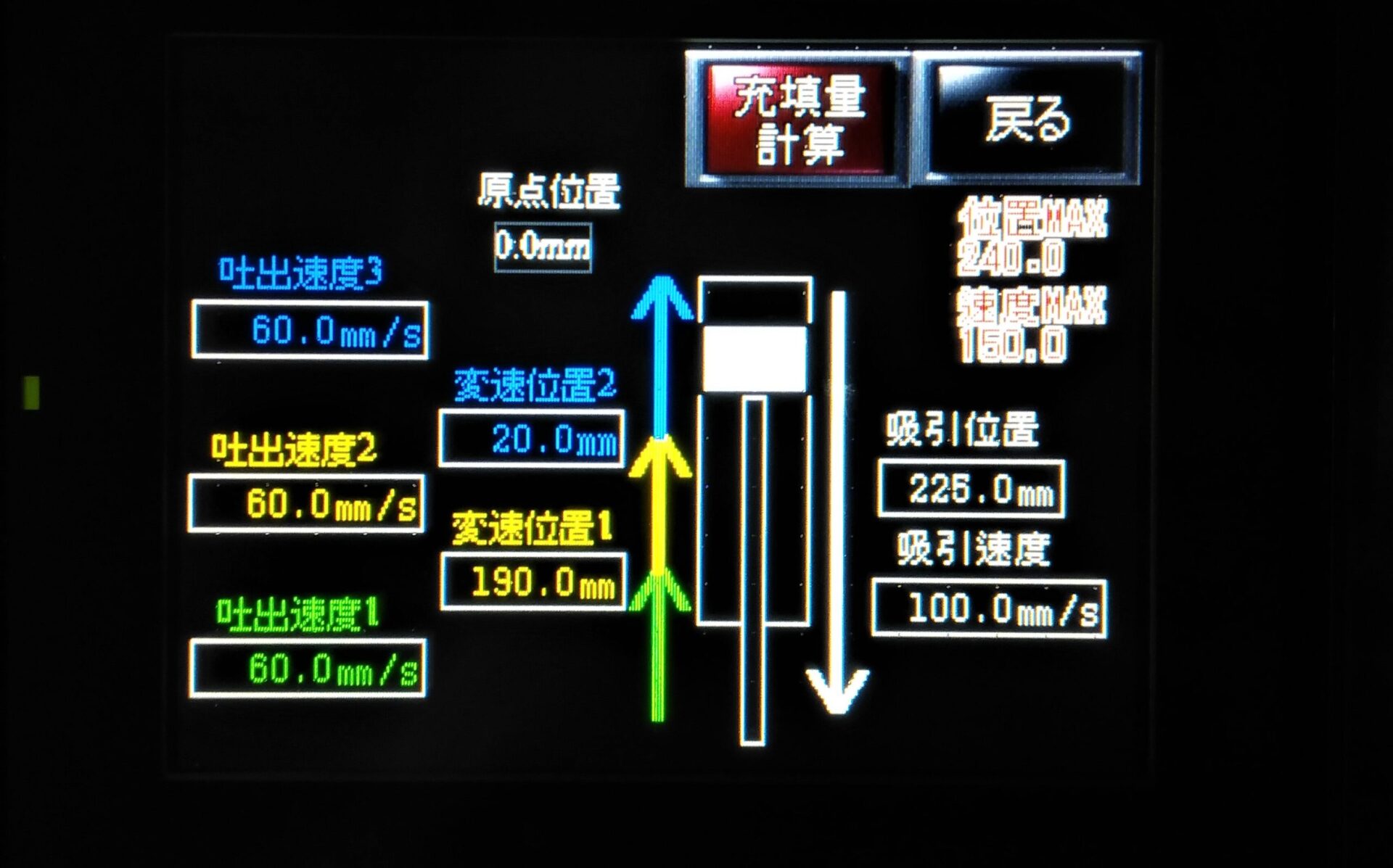

- Filling volume can be easily adjusted via a touch panel interface.
Point 2 Ideal for Small-Batch, Multi-Product Production
- The sanitary design allows for easy disassembly and cleaning, enabling quick product changeovers.
- A filling range of 5 to 1,000 cc can be achieved by changing the cylinder.
Point 3 Suitable for Liquids to Viscous Materials
- Direct filling from a floor-standing tank is possible.

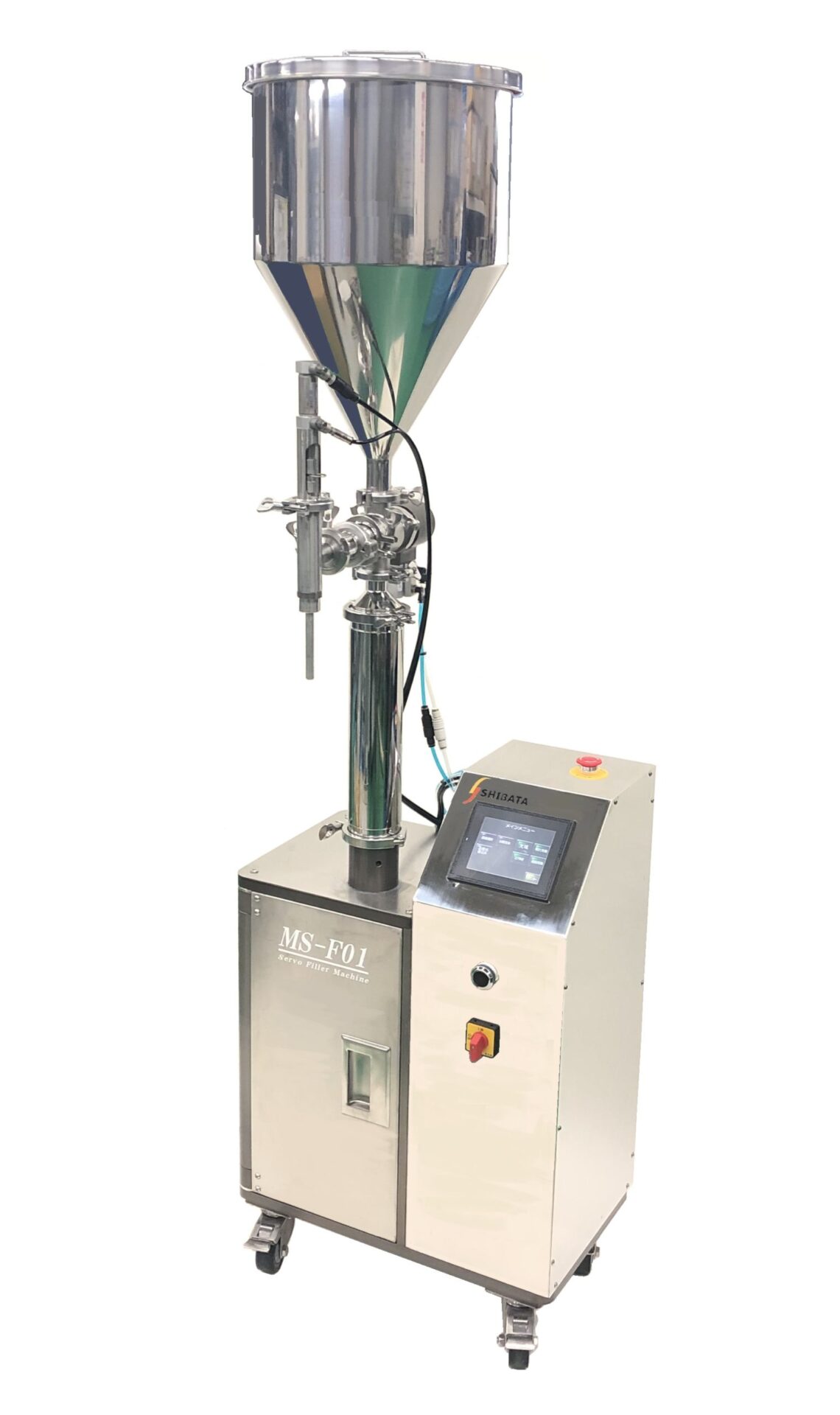

- By using the optional hopper, even creams and other viscous products can be filled.
Related Videos
Product Specifications
| Filling Method |
Servo-driven cylinder piston system |
|---|---|
| Filling Range |
20 to 1,000 cc (per container, by changing the cylinder) |
| Filling Volume Adjustment |
Digital setting via touch panel |
| Recipe Memory |
Stores filling speed and volume settings for up to 40 products |
| Wetted Materials |
SUS304 and PEEK |
| Power Supply |
3-phase 200V, 0.75 kW |
| Air Supply |
0.5 MPa – 60 L/min |
| Options |
Hopper tank |
*Note: Specifications may vary depending on product shape, size, characteristics, and packaging material specifications.
